Many of the larger Full Aluminum Radiators have worked best with stock OEM cooling fans, but the difficultly is to make engine bay clearance with stock fans and a thicker radiator core.

We have a solution to offer thinner cooling fans that do not draw such high amperage where it requires installing relays.

We recommend 14 inch cooling fan be used for Radiator Side and 12 Fan be used for AC cooling side systems. We don't offer bolt in fan shrouds like other competitors due to the lack in size. They typically offer 12 inch and 12 inch. For example the S2000 Radiator requires at minimum 14 inch fan for the Radiator side. On the S2000 AC side we would also use 14 inch, however due to size constraints 12 inch is the largest we can fit.

We include mounting hardware and Honda connector plug style for older Hondas like the S2000, Civic EG, EK, Acura Integra DC2 chassis types. Option to pre-wire / crimp with Honda connector available.

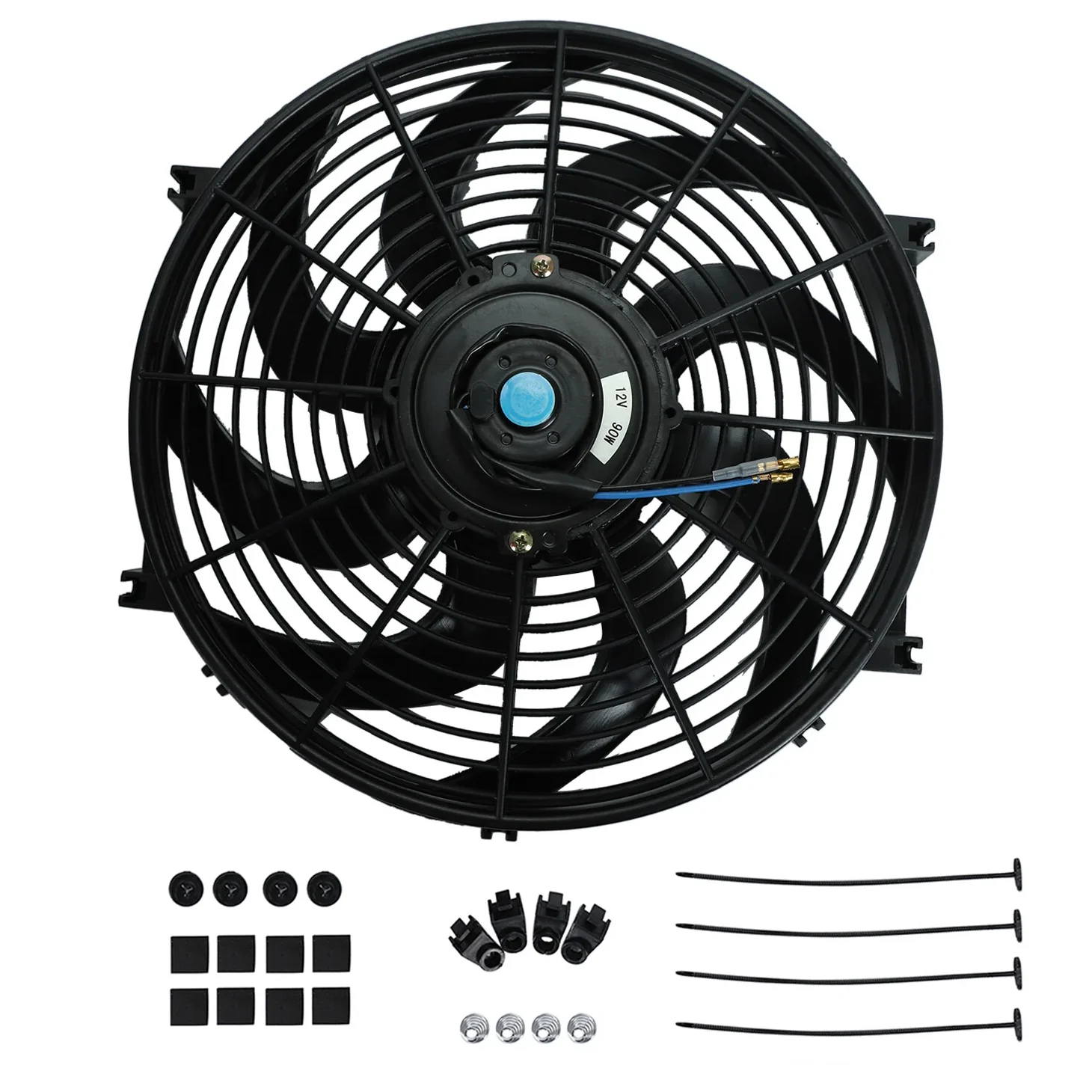

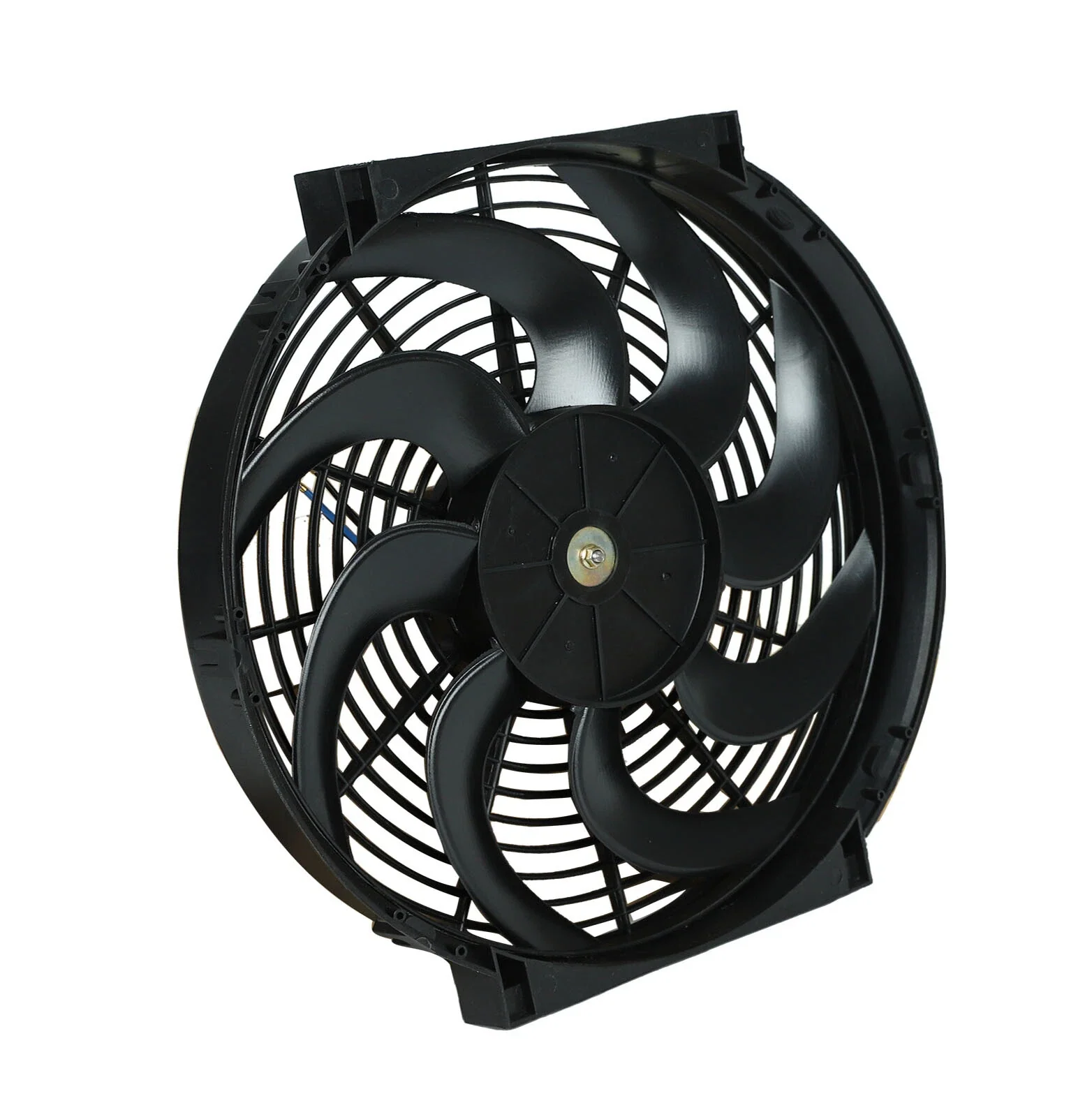

Fan Specs 14 Inch Fan:

8 Blades
9V 90W
Amp Draw: 9.5
Maximum Fan CFM: 900 CFM
Maximum Fan RPM: 2000 RPM

Fan Specs 12 Inch Fan:

10 blades
9V 80W
Amp Draw: 7.5
Maximum Fan CFM: 800 CFM
Maximum Fan RPM: 2000 RPM
